PRODUCTS

Cable glands

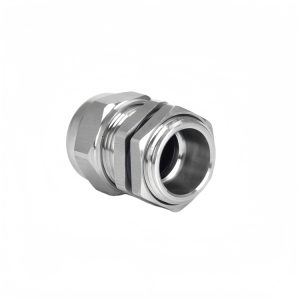

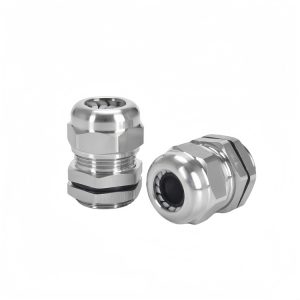

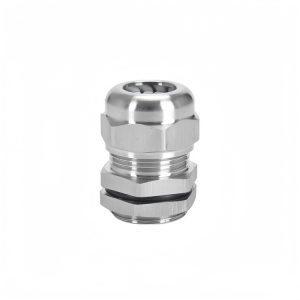

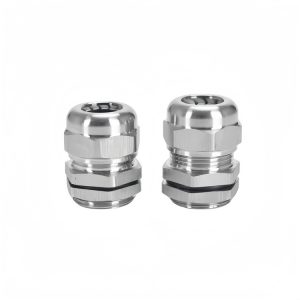

SS304 stainless steel cable glands are a reliable solution for cable routing and sealing in applications requiring high resistance to weather, chemicals, dust and moisture. Using NBR sealing and a nylon clamping claw, they provide durable, leak-proof cable attachment and effective protection from the elements. They are ideal for industrial installations, automation systems and outdoor applications where reliability and durability are key. Available in a variety of sizes.
TECHNICAL DATA:

Material: stainless steel SS304

Seal and O-ring: NBR

Clamping claw: nylon

Degree of protection: IP68 – fully waterproof and dustproof

Operating temperature range: from -40°C to +100°C, short-term up to +120°C

Resistance to: Salt, oil, grease, alcohol, weak acids and solvents

Generate the datasheet in PDF

 Send inquiry

Send inquiry

    The following table shows the metric glands

    Hide the table
    No.
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    Cable range (mm)
    3-6
    3-6
    4-8
    4-8
    4-8
    5-10
    6-12
    10-14
    10-14
    12-16
    12-16
    13-18
    13-18
    13-18
    13-18
    15-22
    18-22
    18-25
    18-25
    18-25
    23-28
    22-30
    25-33
    25-33
    33-38
    32-38
    37-44
    38-44
    37-44
    42-52
    42-52
    55-62
    65-70
    75-85
    Thread length (mm)
    7
    7
    8
    8
    8
    8
    8
    8
    9
    9
    9
    9
    9
    9
    9
    10
    10
    10
    10
    11
    11
    11
    12
    12
    13
    13
    14
    14
    14
    15
    15
    16
    16
    16
    Catalogue No.
    5.US-SS-M1006
    5.US-SS-M1206
    5.US-SS-M1208
    5.US-SS-M1408
    5.US-SS-M1608
    5.US-SS-M1810
    5.US-SS-M2012
    5.US-SS-M2214
    5.US-SS-M2414
    5.US-SS-M2416
    5.US-SS-M2516
    5.US-SS-M2518
    5.US-SS-M2718
    5.US-SS-M2818
    5.US-SS-M3018
    5.US-SS-M3022
    5.US-SS-M3222
    5.US-SS-M3625
    5.US-SS-M3725
    5.US-SS-M4025
    5.US-SS-M4028
    5.US-SS-M4230
    5.US-SS-M4733
    5.US-SS-M4833
    5.US-SS-M5038
    5.US-SS-M5438
    5.US-SS-M6044
    5.US-SS-M6344
    5.US-SS-M6444
    5.US-SS-M7052
    5.US-SS-M7252
    5.US-SS-M8062
    5.US-SS-M8870
    5.US-SS-M10085
